Industrial & Outdoor Range - Products | Kundan Switchgear
Products

Industrial & Outdoor Range

31 products available

[LIVE DEBUG] All: 109 | Ind: 31 | Arch: 59 | Acc: 19 | Time: 08:44:12 | Ver: 5d0c5573

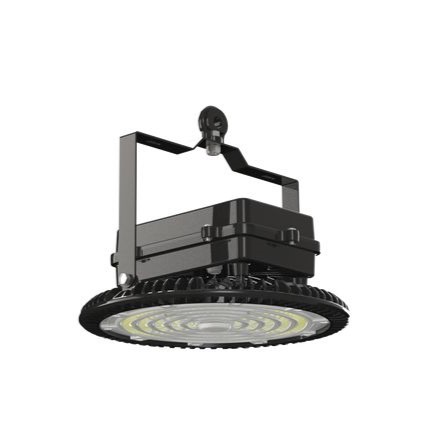

High bay / UFO G2 – 2835 | Spiral Lens (70°) High bay / UFO G2 – 2835 | Spiral Lens (70°)
2
YEARS
WARRANTY
High bay / UFO light

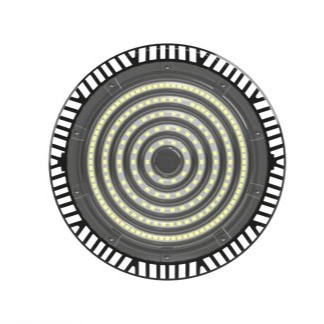

High bay / UFO G2 – 2835 | Spiral Lens (70°)

Series: High bay / UFO G2
LED Type: 2835
Beam Angle: 70°
Optics: Spiral Lens
IP Rating: IP66
Surge Protection: 8KV Internal + 10KV Surge Protection
Warranty: 2 Year(s)

Available Models

LHB-080-A LHB-100-A LHB-120-A LHB-150-A LHB-200-A LHB-250-A
80W 100W 120W 150W 200W 250W
8800 lm 11000 lm 13200 lm 16500 lm 22000 lm 27500 lm
8KV Internal + 10KV Surge Protection

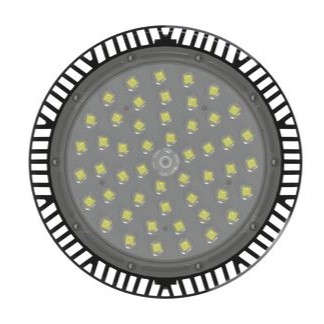

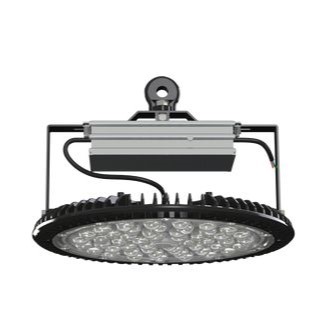

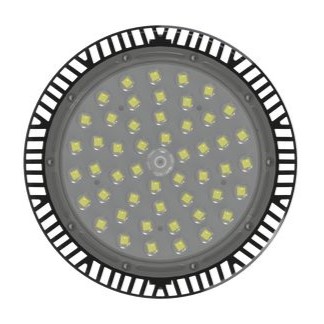

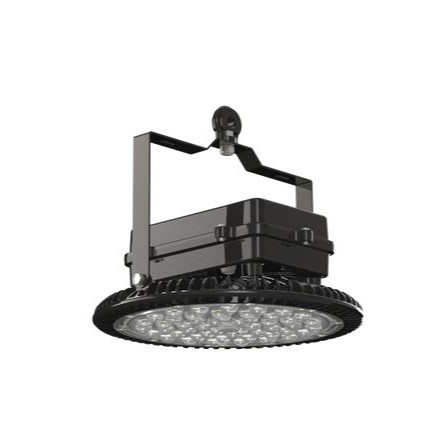

High bay / UFO G2 – 5050 | Bubble Lens (90°) High bay / UFO G2 – 5050 | Bubble Lens (90°)
3
YEARS
WARRANTY
High bay / UFO light

High bay / UFO G2 – 5050 | Bubble Lens (90°)

Series: High bay / UFO G2
LED Type: 5050
Beam Angle: 90°
Optics: Bubble Lens
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 3 Year(s)

Available Models

LHB-080-B LHB-100-B LHB-120-B LHB-150-B LHB-200-B
80W 100W 120W 150W 200W
9600 lm 12000 lm 14400 lm 18000 lm 24000 lm
4KV Internal + 10KV Surge Protection

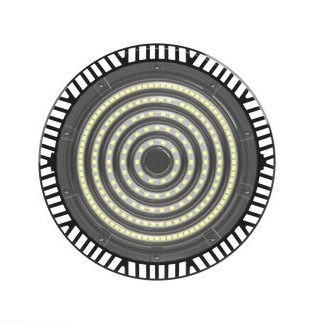

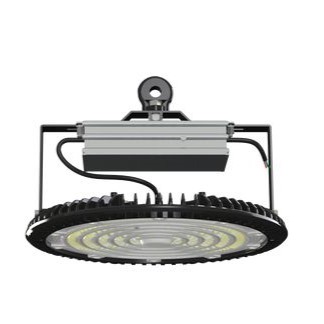

High bay / UFO G2 – 5050 | Spiral Lens (70°) High bay / UFO G2 – 5050 | Spiral Lens (70°)
5
YEARS
WARRANTY
High bay / UFO light

High bay / UFO G2 – 5050 | Spiral Lens (70°)

Series: High bay / UFO G2
LED Type: 5050
Beam Angle: 70°
Optics: Spiral Lens
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 5 Year(s)

Available Models

LHB-080-C LHB-100-C LHB-120-C LHB-150-C LHB-200-C LHB-240-C
80W 100W 120W 150W 200W 240W
15600 lm 19500 lm 23400 lm 29250 lm 39000 lm 46800 lm
4KV Internal + 10KV Surge Protection
High bay / UFO G2 – 5050 | Bubble Lens (90°) High bay / UFO G2 – 5050 | Bubble Lens (90°)
5
YEARS
WARRANTY
High bay / UFO light

High bay / UFO G2 – 5050 | Bubble Lens (90°)

Series: High bay / UFO G2
LED Type: 5050
Beam Angle: 90°
Optics: Bubble Lens
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 5 Year(s)

Available Models

LHB-080-D LHB-100-D LHB-120-D LHB-150-D LHB-200-D
80W 100W 120W 150W 200W
9600 lm 12000 lm 14400 lm 18000 lm 24000 lm
4KV Internal + 10KV Surge Protection

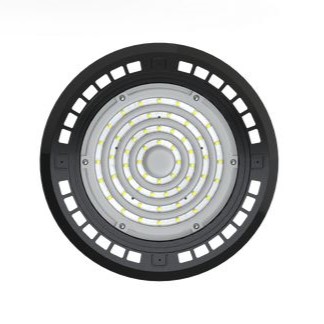

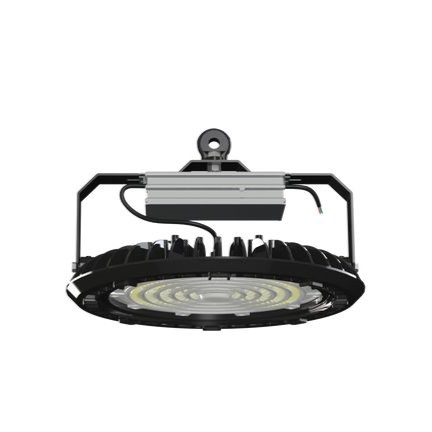

High bay / UFO G1 – 5050 | Spiral (70°) High bay / UFO G1 – 5050 | Spiral (70°)
5
YEARS
WARRANTY
High bay / UFO light

High bay / UFO G1 – 5050 | Spiral (70°)

Series: High bay / UFO G1
LED Type: 5050
Beam Angle: 70°
Optics: Spiral
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 5 Year(s)

Available Models

LHB-080-E LHB-100-E LHB-120-E LHB-150-E LHB-200-E LHB-240-E
80W 100W 120W 150W 200W 240W
11600 lm 14500 lm 17400 lm 21750 lm 29000 lm 34800 lm
4KV Internal + 10KV Surge Protection

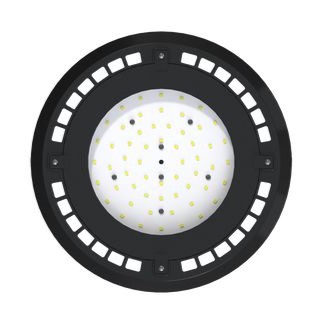

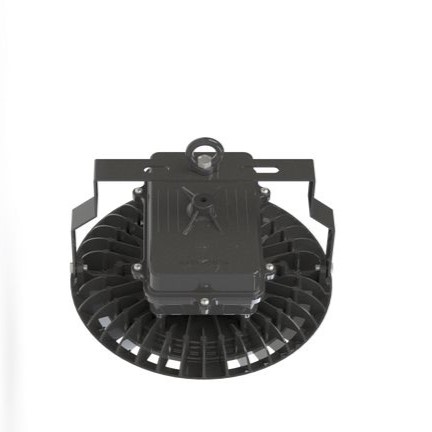

High bay / UFO G1 | Glass (120°) High bay / UFO G1 | Glass (120°)
2
YEARS
WARRANTY
High bay / UFO light

High bay / UFO G1 | Glass (120°)

Series: High bay / UFO G1
Beam Angle: 120°
Lens Type: Glass
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 2 Year(s)

Available Models

LHB-080-F LHB-100-F LHB-120-F LHB-150-F LHB-200-F
80W 100W 120W 150W 200W
9200 lm 11500 lm 13800 lm 17250 lm 23000 lm
4KV Internal + 10KV Surge Protection

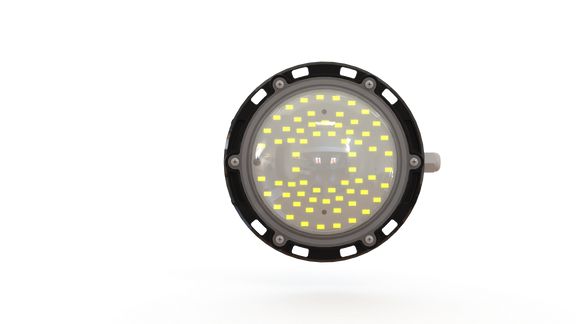

Well Glass / Canopy G2 | Clear Dome (120°) Well Glass / Canopy G2 | Clear Dome (120°)
2
YEARS
WARRANTY
Well Glass / Canopy Light

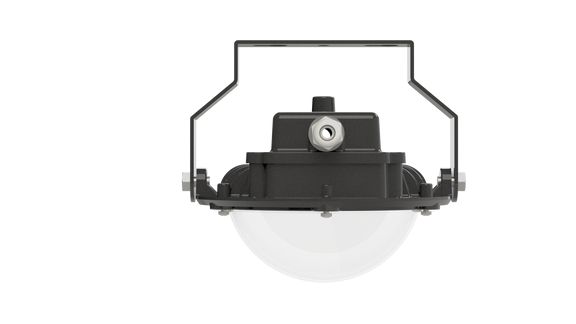

Well Glass / Canopy G2 | Clear Dome (120°)

Series: Well Glass / Canopy G2
Beam Angle: 120°
Optics Type: Clear Dome
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LWG-030-A LWG-040-A LWG-045-A
30W 40W 45W

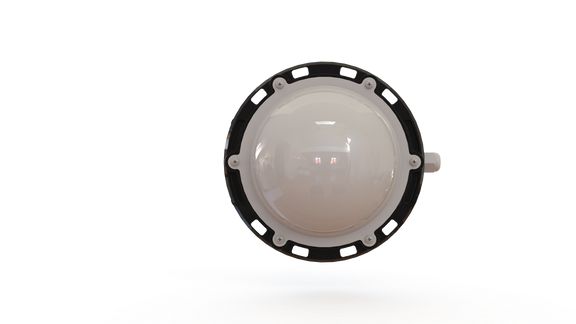

Well Glass / Canopy G2 | Milky Dome (120°) Well Glass / Canopy G2 | Milky Dome (120°)
2
YEARS
WARRANTY
Well Glass / Canopy Light

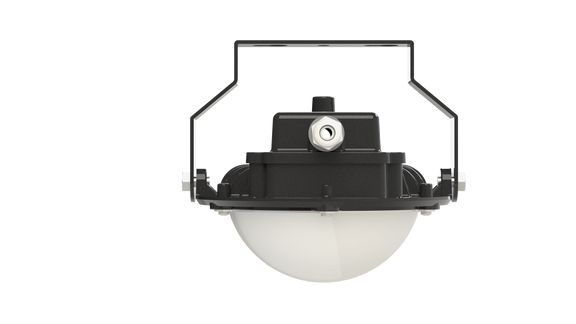

Well Glass / Canopy G2 | Milky Dome (120°)

Series: Well Glass / Canopy G2
Beam Angle: 120°
Optics Type: Milky Dome
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LWG-030-B LWG-040-B LWG-045-B
30W 40W 45W

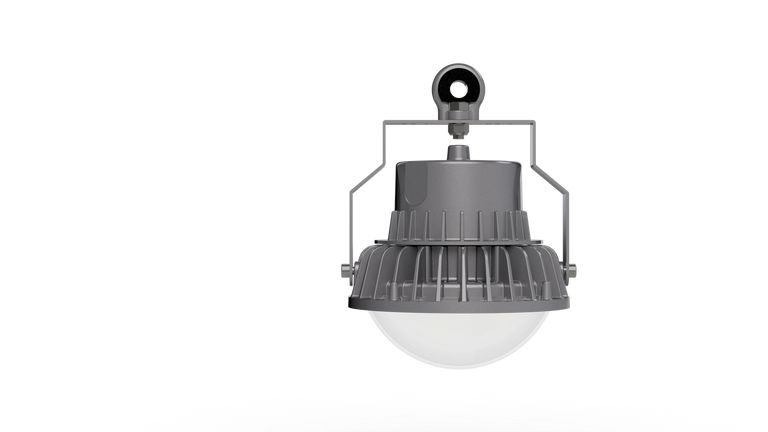

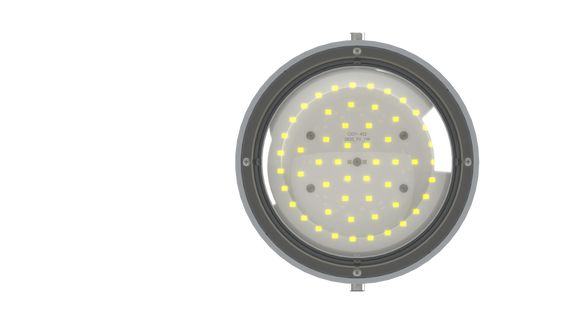

Well Glass / Canopy G1 | Clear Dome (120°) Well Glass / Canopy G1 | Clear Dome (120°)
2
YEARS
WARRANTY
Well Glass / Canopy Light

Well Glass / Canopy G1 | Clear Dome (120°)

Series: Well Glass / Canopy G1
Beam Angle: 120°
Optics Type: Clear Dome
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LWG-060-C LWG-070-C LWG-080-C
60W 70W 80W

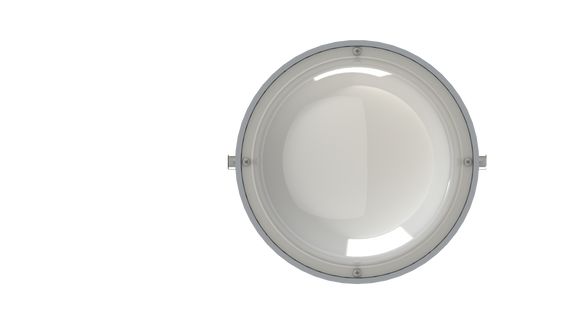

Well Glass / Canopy G1 | Milky Dome (120°) Well Glass / Canopy G1 | Milky Dome (120°)
2
YEARS
WARRANTY
Well Glass / Canopy Light

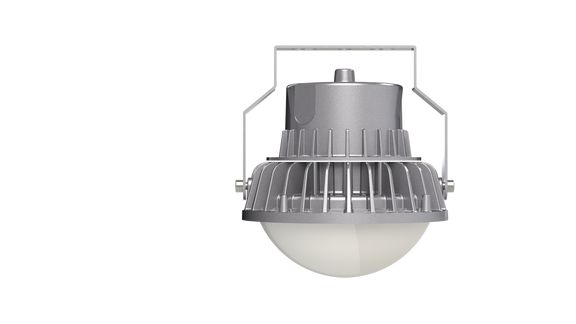

Well Glass / Canopy G1 | Milky Dome (120°)

Series: Well Glass / Canopy G1
Beam Angle: 120°
Optics Type: Milky Dome
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LWG-060-D LWG-070-D LWG-080-D
60W 70W 80W

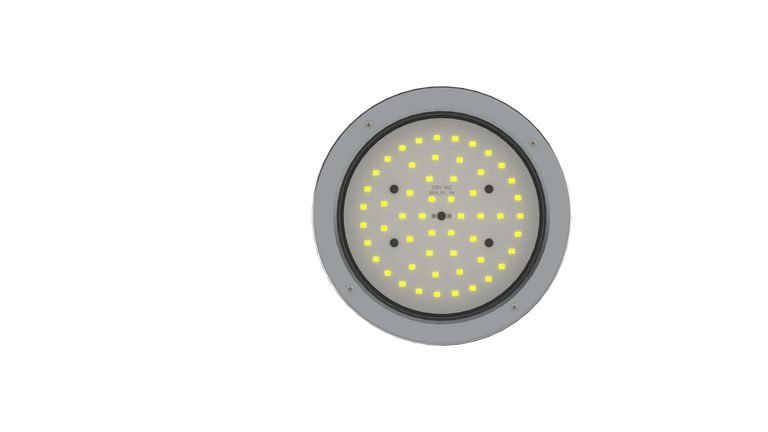

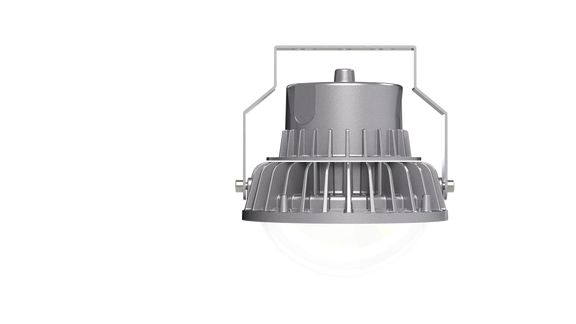

Well Glass / Canopy G1 | Glass (120°) Well Glass / Canopy G1 | Glass (120°)
2
YEARS
WARRANTY
Well Glass / Canopy Light

Well Glass / Canopy G1 | Glass (120°)

Series: Well Glass / Canopy G1
Beam Angle: 120°
Optics Type: Glass
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LWG-060-E LWG-070-E LWG-080-E
60W 70W 80W

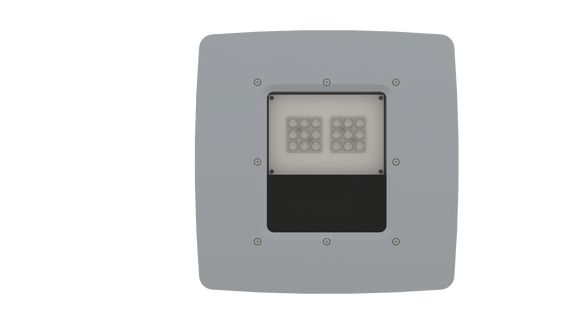

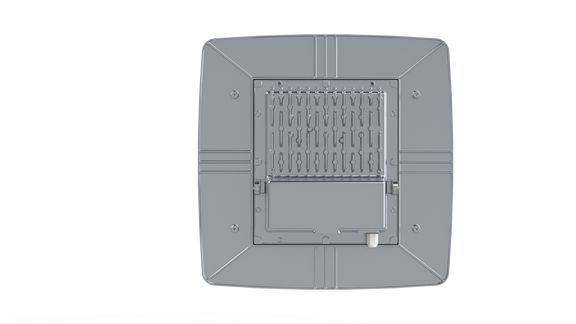

Canopy Light | Glass Canopy Light | Glass
2
YEARS
WARRANTY
Well Glass / Canopy Light

Canopy Light | Glass

Type: Canopy Light
Lens Type: Glass
IP Rating: IP66
Warranty: 2 Year(s)

Available Models

LCL-080
80W

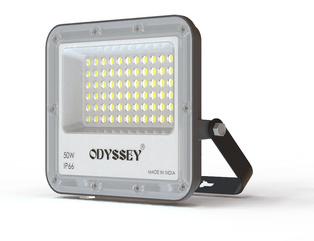

Floodlight – DOB (36° / 46°) Floodlight – DOB (36° / 46°)
1
YEARS
WARRANTY
Flood Light

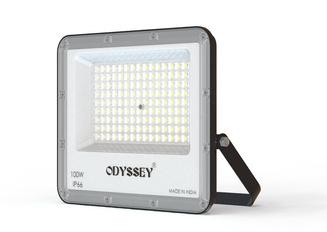

Floodlight – DOB (36° / 46°)

Series: DOB
Type: Floodlight
Beam Angle: 36° / 46°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 1 Year(s)

Available Models

LFL-050-A LFL-100-A LFL-150-A LFL-200-A
50W 100W 150W 200W
5000 lm 10000 lm 15000 lm 20000 lm
4KV Internal Surge Protection

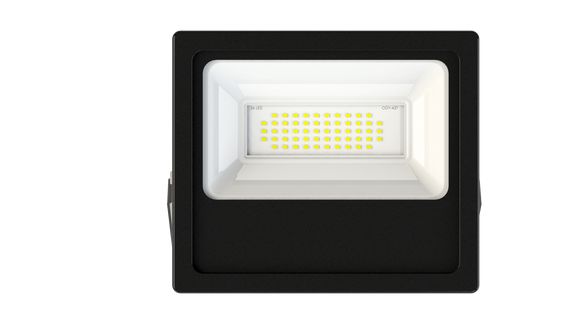

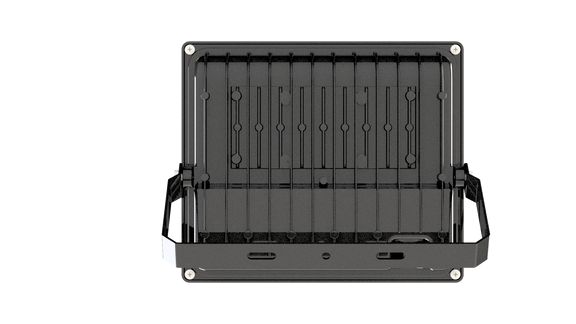

Floodlight – Optima (120°) Floodlight – Optima (120°)
2
YEARS
WARRANTY
Flood Light

Floodlight – Optima (120°)

Series: Optima
Type: Floodlight
Beam Angle: 120°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

LFL-030-B LFL-050-B LFL-100-B LFL-150-B LFL-200-B LFL-250-B
30W 50W 100W 150W 200W 250W
3200 lm 5200 lm 10500 lm 15750 lm 21000 lm 26250 lm
4KV Internal Surge Protection

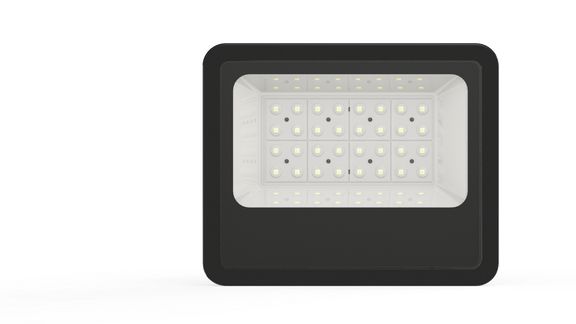

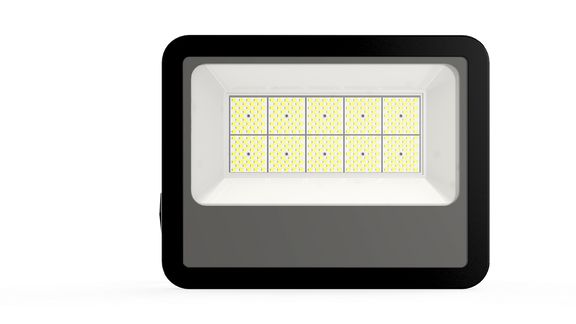

Floodlight Lens – Optima (90°)
3
YEARS
WARRANTY
Flood Light

Floodlight Lens – Optima (90°)

Series: Optima
Type: Floodlight Lens
Beam Angle: 90°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 3 Year(s)

Available Models

LFL-100-C LFL-150-C LFL-200-C LFL-250-C
100W 150W 200W 250W
10500 lm 15750 lm 21000 lm 26250 lm
4KV Internal Surge Protection
Floodlight Lens – Optima (90°)
5
YEARS
WARRANTY
Flood Light

Floodlight Lens – Optima (90°)

Series: Optima
Type: Floodlight Lens
Beam Angle: 90°
IP Rating: IP66
Surge Protection: 4KV Internal + 10KV Surge Protection
Warranty: 5 Year(s)

Available Models

LFL-050-D LFL-100-D LFL-150-D LFL-200-D LFL-250-D
50W 100W 150W 200W 250W
6000 lm 12000 lm 18000 lm 24000 lm 30000 lm
4KV Internal + 10KV Surge Protection

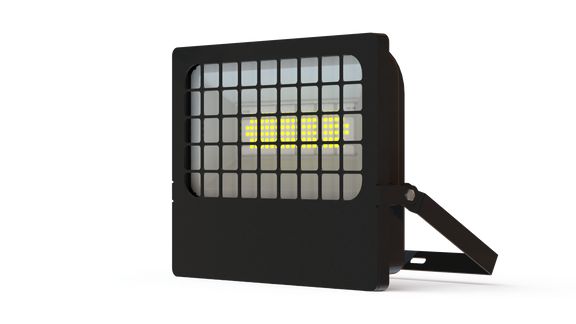

24V AC Floodlight – Optima
2
YEARS
WARRANTY
Flood Light

24V AC Floodlight – Optima

Series: Optima
Type: 24V AC Floodlight
IP Rating: IP66
Input Voltage: 22–26V AC
Input Current: 2.08A / 4.16A
Warranty: 2 Year(s)

Available Models

LFL-050-E LFL-100-E
50W 100W
Linear Light – Linear (20° / 60° / 90°)
5
YEARS
WARRANTY
Linear Light

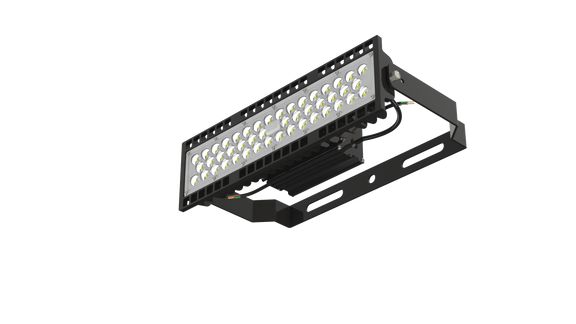

Linear Light – Linear (20° / 60° / 90°)

Series: Linear
Type: Linear Light
Beam Angle: 20° / 60° / 90°
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 5 Year(s)

Available Models

LLL-100
100W
6KV Internal Surge Protection

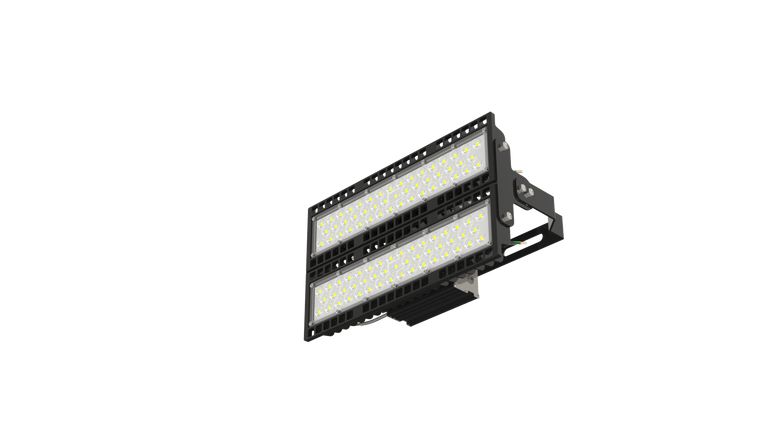

Linear Light – Linear (20° / 60° / 90°)
5
YEARS
WARRANTY
Linear Light

Linear Light – Linear (20° / 60° / 90°)

Series: Linear
Type: Linear Light
Beam Angle: 20° / 60° / 90°
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 5 Year(s)

Available Models

LLL-200
200W
6KV Internal Surge Protection

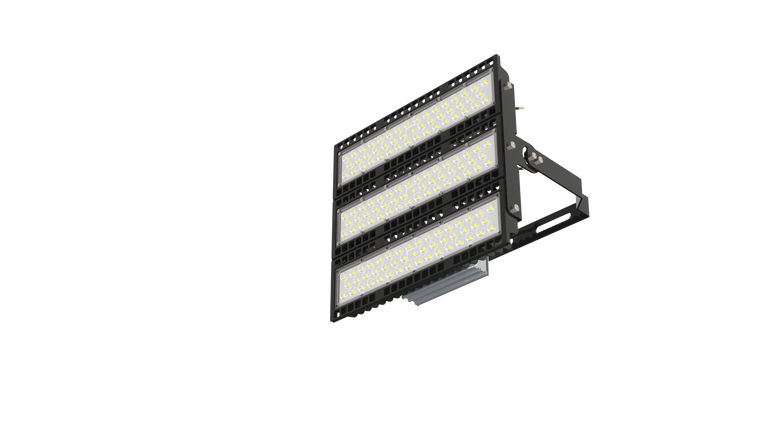

Linear Light – Linear (20° / 60° / 90°)
5
YEARS
WARRANTY
Linear Light

Linear Light – Linear (20° / 60° / 90°)

Series: Linear
Type: Linear Light
Beam Angle: 20° / 60° / 90°
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 5 Year(s)

Available Models

LLL-300
300W
6KV Internal Surge Protection

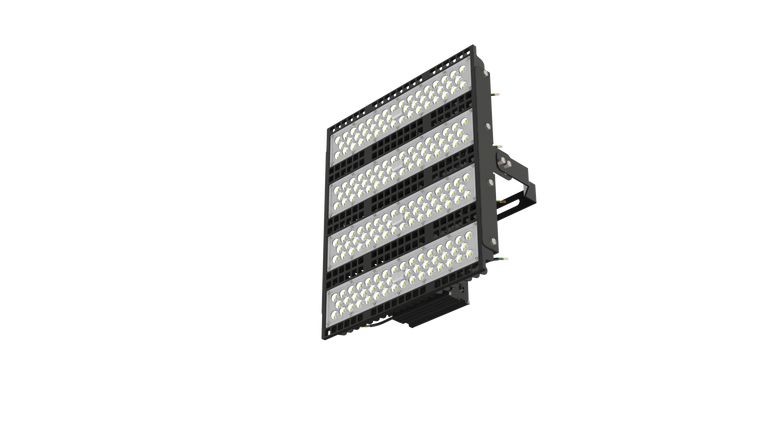

Linear Light – Linear (20° / 60° / 90°)
5
YEARS
WARRANTY
Linear Light

Linear Light – Linear (20° / 60° / 90°)

Series: Linear
Type: Linear Light
Beam Angle: 20° / 60° / 90°
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 5 Year(s)

Available Models

LLL-400
400W
6KV Internal Surge Protection

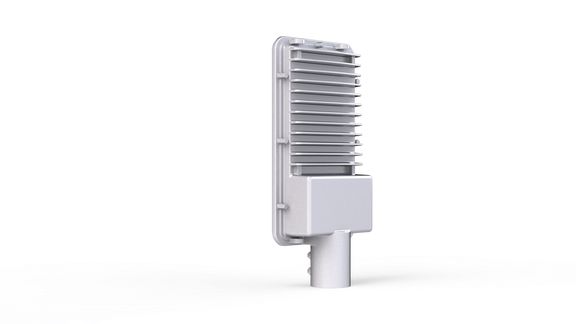

Street Light – Frame (120°) Street Light – Frame (120°)
2
YEARS
WARRANTY
Street Light

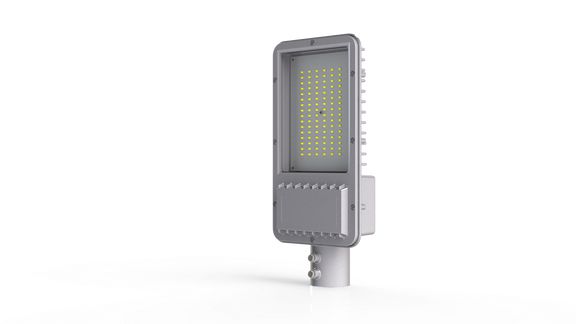

Street Light – Frame (120°)

Series: Frame
Type: Street Light
Beam Angle: 120°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

LSL-040-A LSL-060-A LSL-100-A LSL-120-A LSL-150-A LSL-200-A LSL-250-A
40W 60W 100W 120W 150W 200W 250W
4400 lm 6600 lm 11000 lm 13200 lm 16500 lm 22000 lm 27500 lm
4KV Internal Surge Protection
Street Light – Frame | II Lens Street Light – Frame | II Lens
3
YEARS
WARRANTY
Street Light

Street Light – Frame | II Lens

Series: Frame
Type: Street Light
Lens Type: II Lens
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 3 Year(s)

Available Models

LSL-040-B LSL-060-B LSL-100-B LSL-120-B LSL-150-B LSL-200-B LSL-250-B
40W 60W 100W 120W 150W 200W 250W
4200 lm 6300 lm 10500 lm 12600 lm 15750 lm 21000 lm 26250 lm
6KV Internal Surge Protection
Street Light – Oak (120°) Street Light – Oak (120°)
2
YEARS
WARRANTY
Street Light

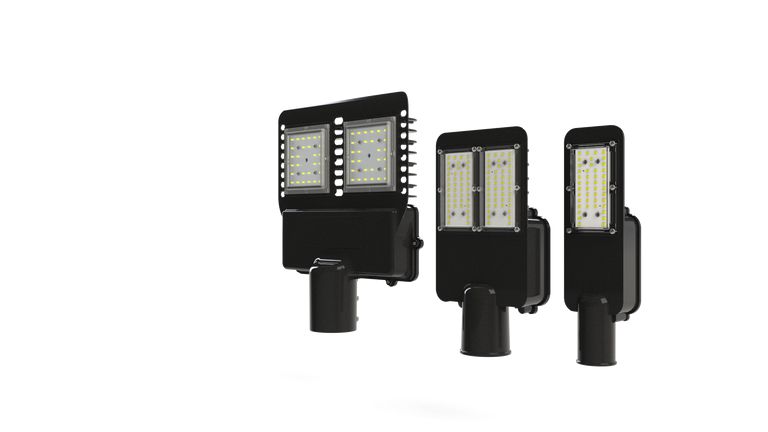

Street Light – Oak (120°)

Series: Oak
Type: Street Light
Beam Angle: 120°
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

OSL-045-C OSL-060-C OSL-075-C OSL-150-C
45W 60W 75W 150W
5600 lm 7500 lm 9200 lm 18000 lm
6KV Internal Surge Protection

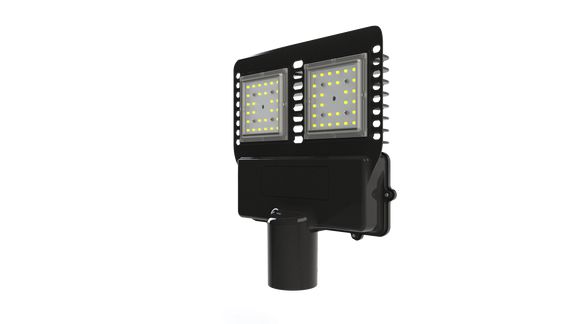

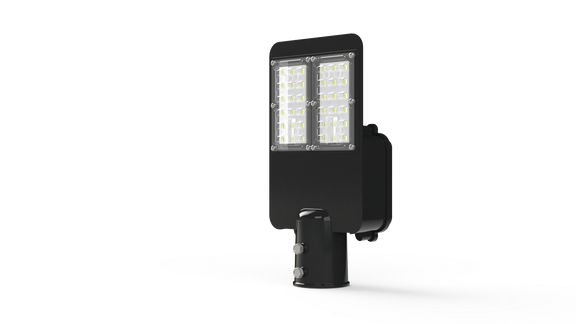

Street Light – Oak | II Lens (45°) Street Light – Oak | II Lens (45°)
2
YEARS
WARRANTY
Street Light

Street Light – Oak | II Lens (45°)

Series: Oak
Type: Street Light
Beam Angle: 45°
Lens Type: II Lens
IP Rating: IP66
Surge Protection: 6KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

OSL-045-D OSL-060-D OSL-075-D OSL-150-D
45W 60W 75W 150W
5200 lm 7000 lm 8400 lm 17300 lm
6KV Internal Surge Protection

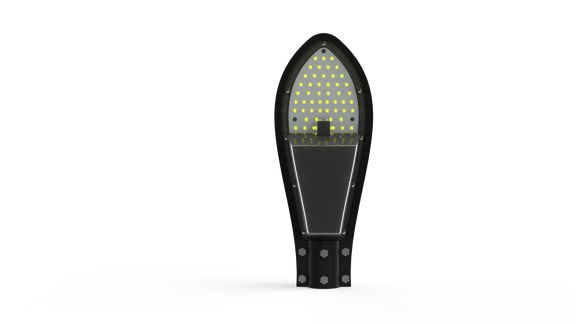

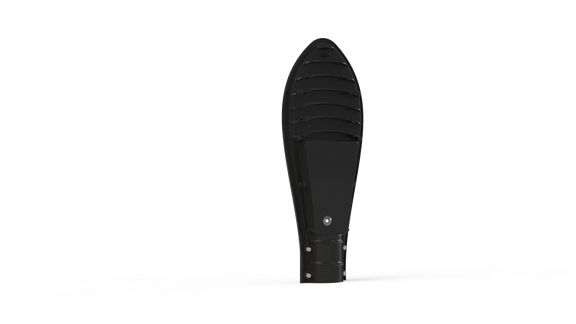

Street Light – Dolphin – G2 (45° - 120°) Street Light – Dolphin – G2 (45° - 120°)
2
YEARS
WARRANTY
Street Light

Street Light – Dolphin – G2 (45° - 120°)

Series: Dolphin
Model Variant: G2
Type: Street Light
Beam Angle: 45° - 120°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

LDL-045-F LDL-045-G LDL-060-F LDL-060-G
45W 45W 60W 60W
5000 lm 5000 lm 6600 lm 6600 lm
4KV Internal Surge Protection

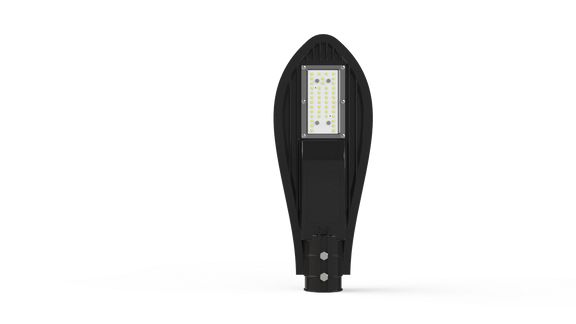

Street Light – Dolphin – G1 (45° - 120°) Street Light – Dolphin – G1 (45° - 120°)
2
YEARS
WARRANTY
Street Light

Street Light – Dolphin – G1 (45° - 120°)

Series: Dolphin
Model Variant: G1
Type: Street Light
Beam Angle: 45° - 120°
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

LDL-025-H LDL-045-H LDL-080-H
25W 45W 80W
3000 lm 5200 lm 9300 lm
4KV Internal Surge Protection
Street Light – Optima
2
YEARS
WARRANTY
Street Light

Street Light – Optima

Series: Optima
Type: Street Light
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

OLSL-020-E OLSL-040-E OLSL-060-E
20W 40W 60W
4KV Internal Surge Protection

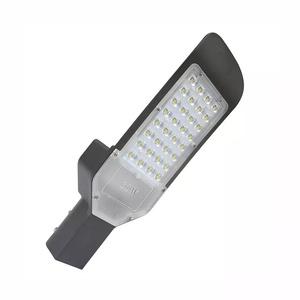

ECO Streetlight | Asymmetric Lens
2
YEARS
WARRANTY
Street Light

ECO Streetlight | Asymmetric Lens

Series: ECO Streetlight
Optics: Asymmetric Lens
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

ESL-024-I ESL-036-I ESL-050-I ESL-060-I ESL-090-I ESL-120-I
24W 36W 50W 60W 90W 120W
2400 lum 3600 lum 5000 lum 6000 lum 9000 lum 12000 lum
4KV Internal Surge Protection

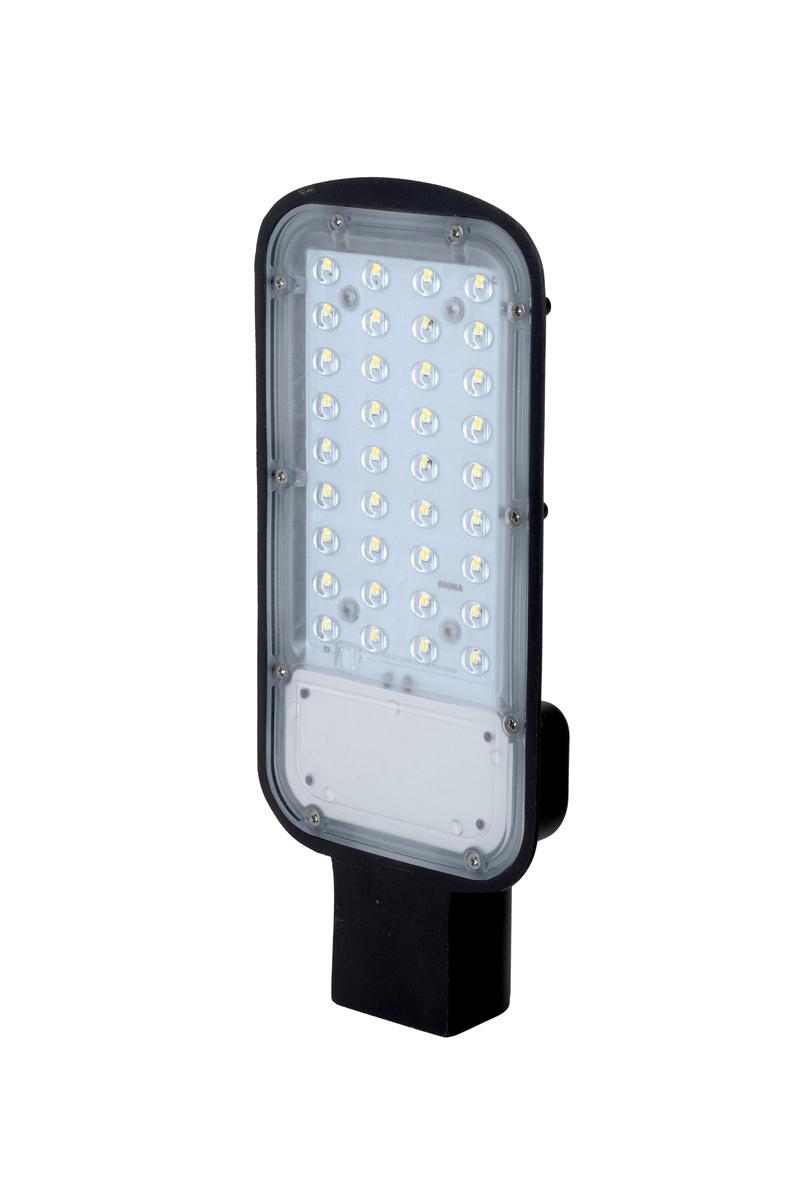

Super Eco streetlight | Asymmetric Lens
2
YEARS
WARRANTY
Street Light

Super Eco streetlight | Asymmetric Lens

Series: Super Eco streetlight
Optics: Asymmetric Lens
IP Rating: IP66
Surge Protection: 4KV Internal Surge Protection
Warranty: 2 Year(s)

Available Models

SESL-024-J SESL-036-J SESL-050-J SESL-100-J
24W 36W 50W 100W
2400 lum 3600 lum 5000 lum 10000 lum
4KV Internal Surge Protection

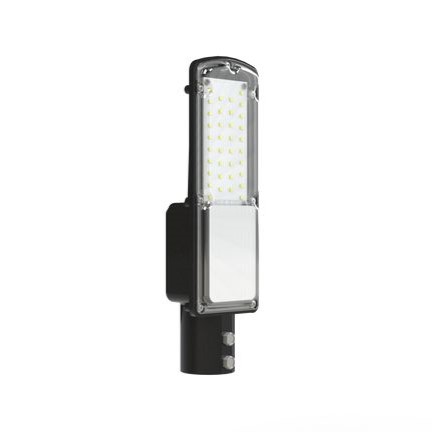

PC Streetlight
2
YEARS
WARRANTY
Street Light

PC Streetlight

Series: PC Streetlight
IP Rating: IP66
Housing: PC Cover
Pole Diameter: 40mm
Warranty: 2 Year(s)
Features: Lithium ion battery

Available Models

SLP-016-K
16W
N/A
